HX36B Automatic Notebook Elastic Band Fixing Machine Completing Punching Threading Gluing And Stacking

Name: HX36B Automatic Notebook Elastic Band Fixing Machine Completing Punching Threading Gluing And Stacking
Brand: HXCP
Price: 50000 USD

Quality HX36B Automatic Notebook Elastic Band Fixing Machine Completing Punching Threading Gluing And Stacking for sale

Supply Ability : 10 sets/month

Cover Thickness : 0.7-7mm

Model Number : HX36B

Max Cover Size : 300×420mm(W×L)

MOQ : 1 set

Delivery Time : 30 work days

Distance from Hole to Upper and Bottom Side : 9-100mm

Payment Terms : L/C,D/A,D/P,T/T

Elastic Band Length : 0-160mm

Price : USD 50000 per set

Distance from Hole to Cover Edge Side : 0-40mm

Certification : CE

Working Speed : 2000pcs/h

Brand Name : HXCP

Min Cover Size : 70×100mm(W×L)

Place of Origin : China

Distance between 2 Holes : 40-271mm

Packaging Details : Stretch Film with Wooden Case

Contact Now

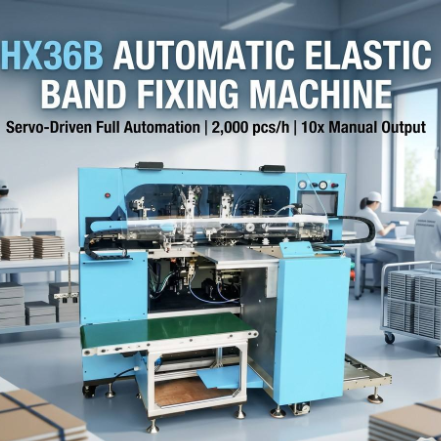

HX36B Automatic Notebook Elastic Band Fixing Machine

The HX36B Automatic Notebook Elastic Band Fixing Machine is dedicated post-press equipment for automatically attaching and fixing elastic bands onto notebook covers. This advanced system integrates a complete production workflow including notebook feeding, punching, elastic band threading, cutting, gluing, fixing, and finished product stacking within a compact unit.

Key Specifications:
• Production Capacity: 2000 pieces per hour
• Program Memory: 10 sets of job parameters
• Operation Modes: Fully automatic and semi-automatic
• Compatible Products: Hardcover, softcover, and pre-cased notebooks
• Drive System: Servo motor control

Application Scenarios

Stationery factories: Mass production of elastic band notebooks, planners, journals, and diaries
Printing & binding workshops: Post-processing of hardcover and softcover notebooks with elastic closures
Notebook manufacturers undertaking diversified orders with frequent specification changes
Production workshops requiring both mass automatic production and small-batch trial production
Custom stationery processing plants for sample testing and flexible batch manufacturing

Core Advantages

Fully automatic completion of feeding, punching, threading, cutting, gluing, fixing, and stacking
Integrated elastic band processing procedures in one compact unit to save workshop space
Servo drive control maintains stable running performance and reduces unexpected shutdown frequency
Productivity exceeds ten times manual operation, greatly improving production efficiency
10 groups of program memory for rapid specification switching between different notebook types
Optional semi-automatic mode meets demands of sample testing and small-batch orders
